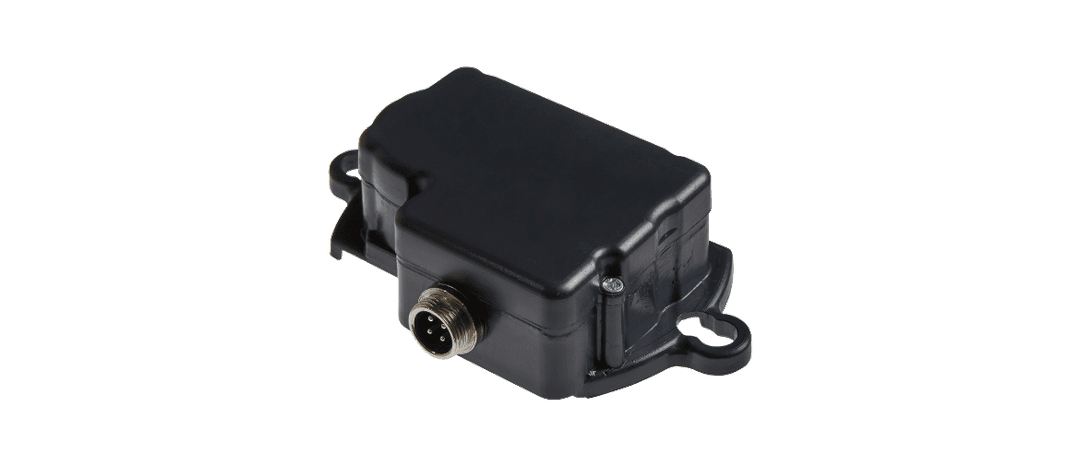

RARE RED
Multi-Turn Absolute Encoder
Multi-turn (22-turn) 8192-pulse absolute encoder. RS-485 interface with 9600–19200 baud support. Compatible with 55–63 mm body types. Contactless magnetic sensing technology is used.
Application Areas
Door Control Systems — Accessories
Technical Specifications
TypeMulti-Turn Absolute Encoder
Number of Turns22 turns
Resolution8192 pulses/turn
Communication ProtocolRS485
Baud Rate9600–19200
Compatible Body Type55-63
Sensing TechnologyContactless magnetic
Features
Multi-turn (22-turn) 8192-pulse absolute encoder.
An RS-485 interface is available with 9600–19200 baud support.
Direct mounting suitable for 55-63 body type is possible.
No additional encoder shaft is required.
Contactless magnetic sensing technology is used.
