Products
High-performance door control systems and power electronics solutions.
High Speed Door

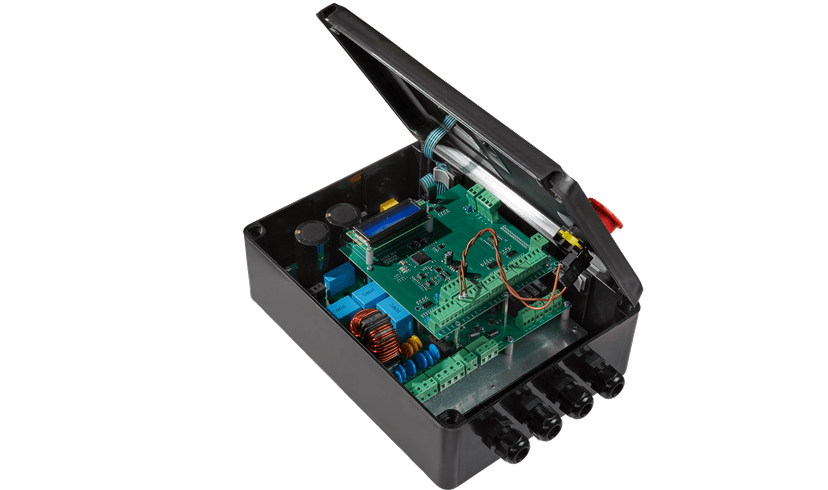

RF30
3-Phase (400V/12A) up to 4.0kW Door Control Unit
For door operators with a capacity of up to 4 kW (12A). 100% duty cycle. 24 volt power supply (2000mA).

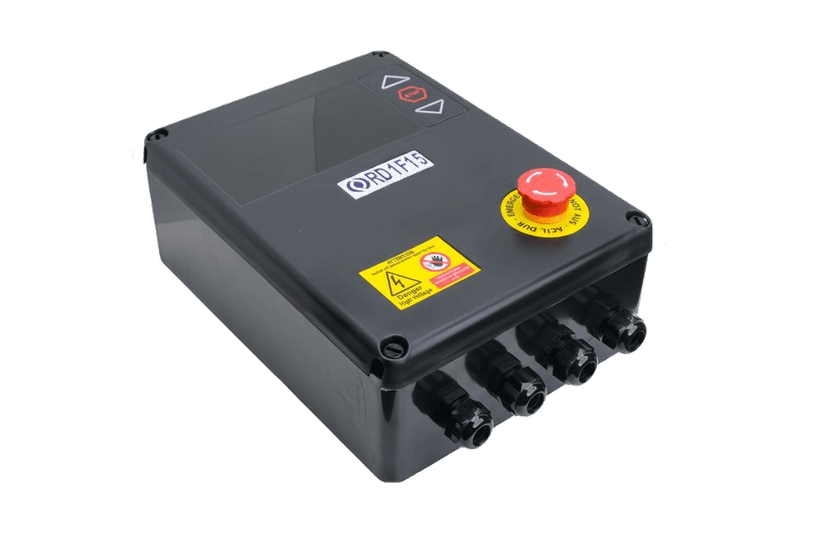

RF15
1-Phase (230V/10A) up to 1.5kW Door Control Unit
For door operators with a capacity of 1.5 kW (10A). Up to 60% duty cycle. 24 volt power supply (2000mA).

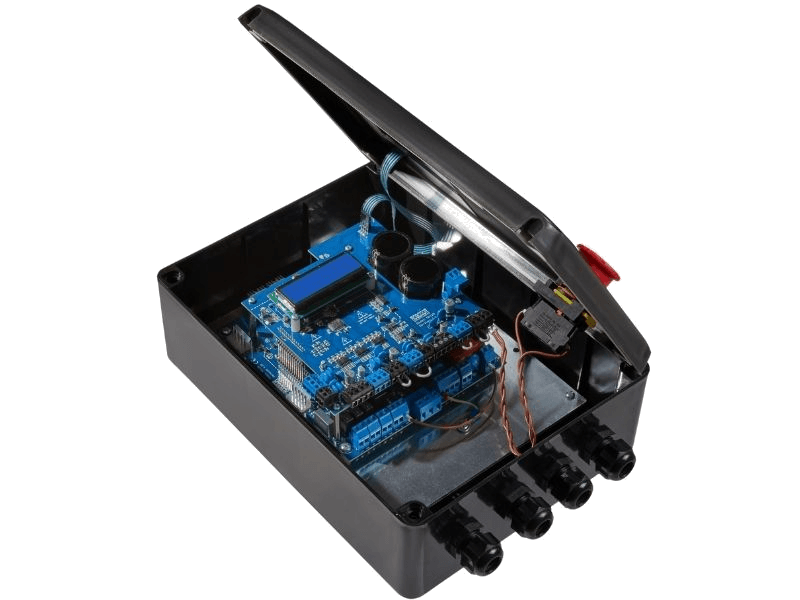

MR220
1-Phase (230V/8A) up to 1.2kW Door Control Unit
For door operators with a capacity of 1.4 kW (9A). Up to 60% duty cycle. 24 volt power supply (1000mA).
Sliding Doors and Gates

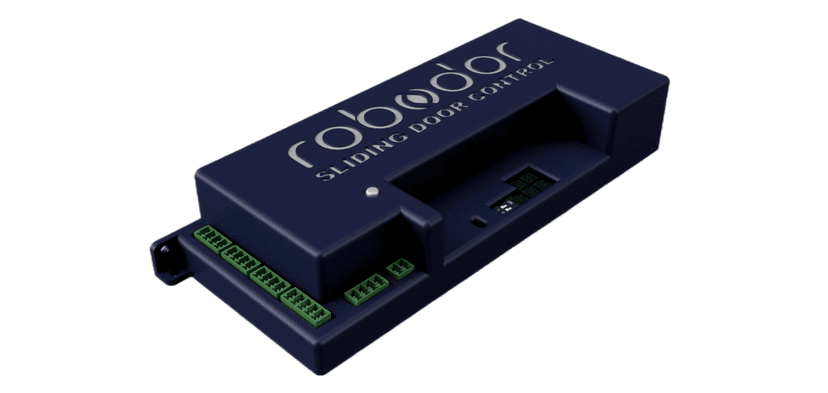

ISDC24
Sliding Door Control Unit
ISDC24 controls 24V brushed DC sliding-door motors. It is designed for store entrances and automatic sliding doors, with photocell, radar and battery-charging connections. Settings are managed through a color graphic display module.

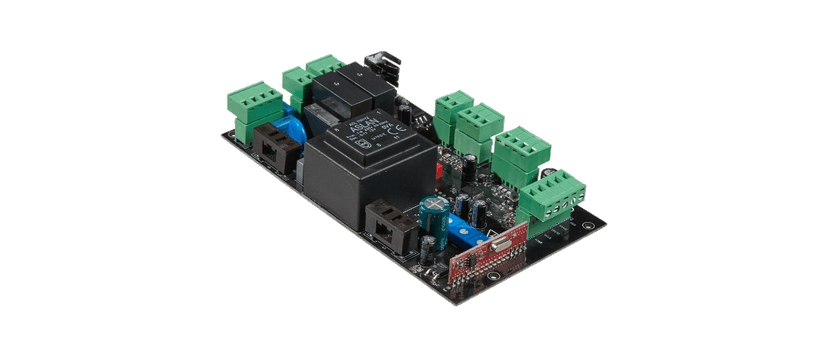

SHT05
Sliding Gate Controller
Specially designed control unit for sliding garden gates.
View Details→Folding, Spiral and Sectional Doors

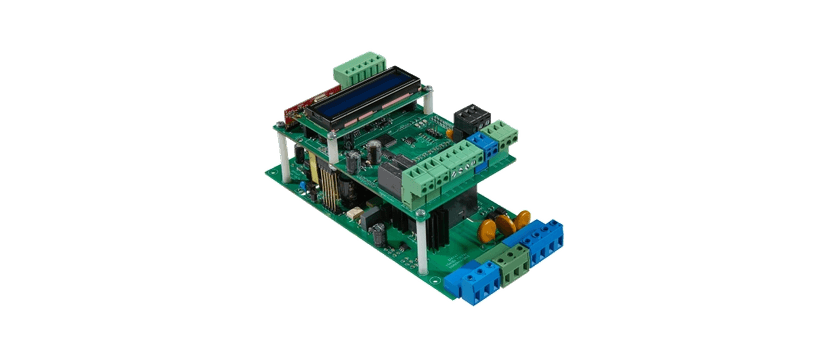

RR07
3-Phase (400V/5A) up to 1kVA Door Control Unit
3×380V, 1×Neutral ±15% input. Can automatically control PVC and sectional doors at a fixed speed.

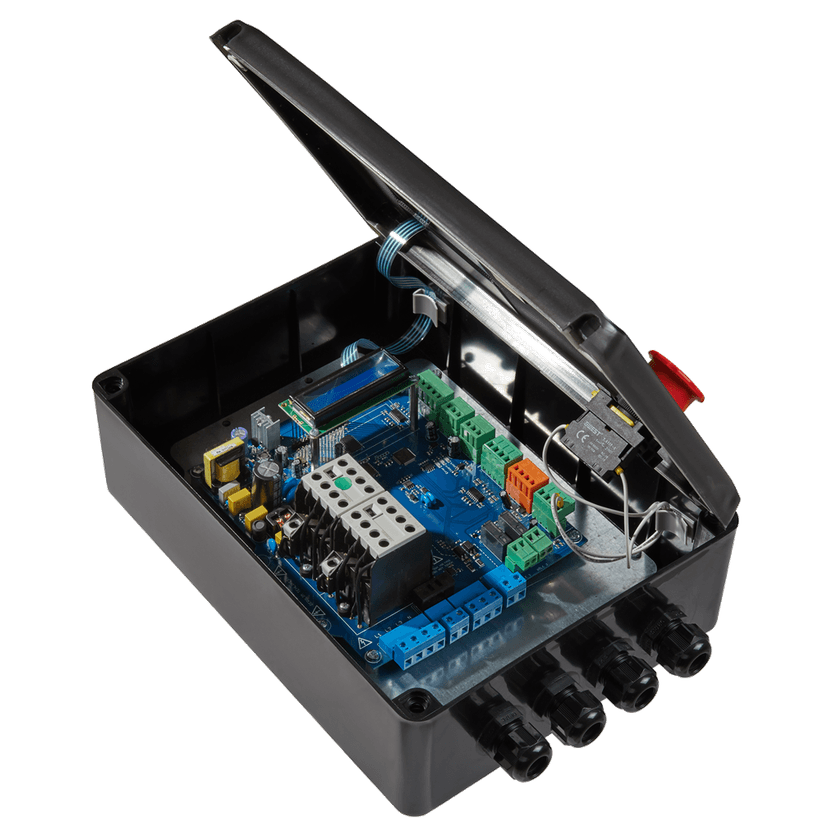

KR380
3-Phase (400V/9A) up to 4kVA Door Control Unit
For operation with electronic limits. Up to 2.2kW with AC drives, 100% duty cycle. 24 volt power supply (600mA).
Encoder

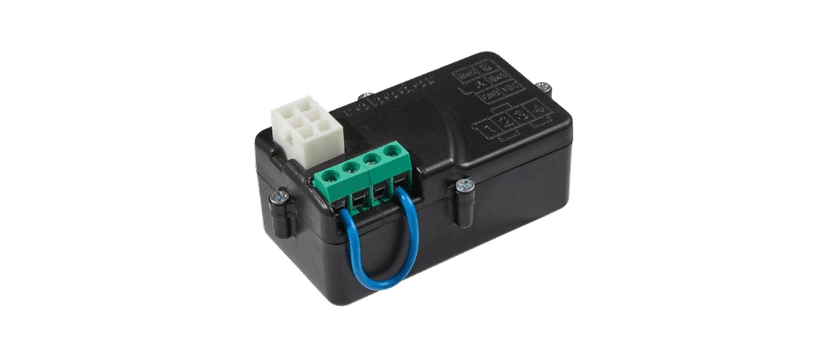

RARE
Single Turn Absolute Encoder
Single-turn 8192-pulse absolute encoder. RS-485 interface with 9600–19200 baud support. Direct mounting to the limit-switch shaft is possible. Contactless magnetic sensing technology is used.

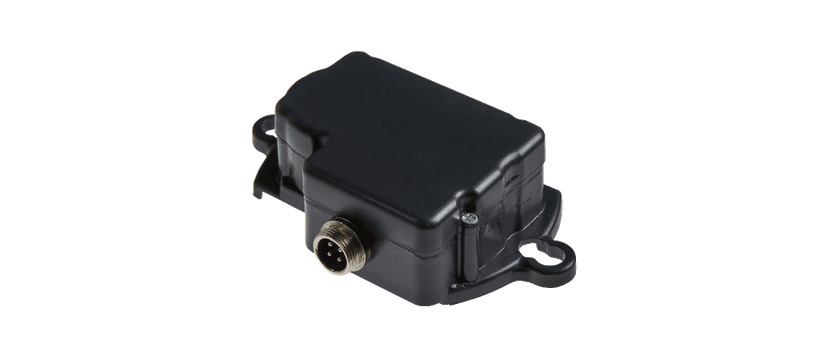

RARE RED
Multi-Turn Absolute Encoder
Multi-turn (22-turn) 8192-pulse absolute encoder. RS-485 interface with 9600–19200 baud support. Compatible with 55–63 mm body types. Contactless magnetic sensing technology is used.
